Getting Started with Kyuubi

Getting Kyuubi

Currently, Kyuubi maintains all releases on GitHub directly. You can get the most recent stable release of Kyuubi here:

Download

Requirements

These are essential components required for Kyuubi to startup. For quick start deployment, the only thing you need is JAVA_HOME being correctly set. The Kyuubi release package you downloaded or built contains the rest prerequisites inside already.

Components Role Optional Version Remarks
Java Java
Runtime
Environment
Required 1.8 Kyuubi is pre-built with Java 1.8
Spark Distribute
SQL
Engine
Optional 3.0 and above By default Kyuubi is pre-built w/
a Apache Spark release inside at
$KYUUBI_HOME/externals
HDFS Distributed
File
System
Optional referenced
by
Spark
Hadoop Distributed File System is a
part of Hadoop framework, used to
store and process the datasets.
You can interact with any
Spark-compatible versions of HDFS.
Hive Metastore Optional referenced
by
Spark
Hive Metastore for Spark SQL to connect
Zookeeper Service
Discovery
Optional Any
zookeeper
ensemble
compatible
with
curator(2.7.1)
By default, Kyuubi provides a
embeded Zookeeper server inside for
non-production use.

Additionally, if you want to work with other Spark compatible systems or plugins, you only need to take care of them as using them with regular Spark applications. For example, you can run Spark SQL engines created by the Kyuubi on any cluster manager, including YARN, Kubernetes, Mesos, e.t.c… Or, you can manipulate data from different data sources with the Spark Datasource API, e.g. Delta Lake, Apache Hudi, Apache Iceberg, Apache Kudu and e.t.c…

Installation

To install Kyuubi, you need to unpack the tarball. For example,

  1. tar zxf kyuubi-1.0.2-bin-spark-3.0.1.tgz

This will result in the creation of a subdirectory named kyuubi-1.0.2-bin-spark-3.0.1 shown below, where the 1.0.2 is the Kyuubi version, and 3.0.1 is the pre-built Spark version.

  1. kyuubi-1.0.2-bin-spark-3.0.1
  2. ├── LICENSE
  3. ├── RELEASE
  4. ├── bin
  5. └── kyuubi
  6. ├── conf
  7. ├── kyuubi-defaults.conf
  8. ├── kyuubi-env.sh
  9. └── log4j.properties
  10. ├── externals
  11. ├── engines
  12. └── spark-3.0.1-bin-hadoop2.7
  13. ├── jars
  14. ├── logs
  15. ├── pid
  16. └── work

From top to bottom are:

  • LICENSE: the APACHE LICENSE, VERSION 2.0 we claim to obey.
  • RELEASE: the build information of this package
  • bin: the entry of the Kyuubi server with kyuubi as the startup script.
  • conf: all the defaults used by Kyuubi Server itself or creating a session with Spark applications.
  • externals
    • engines: contains all kinds of SQL engines that we support, e.g. Apache Spark, Apache Flink(coming soon).
    • spark-3.0.1-bin-hadoop2.7: a pre-downloaded official Spark release, used as default.
  • jars: packages needed by the Kyuubi server.
  • logs: Where the logs of the Kyuubi server locates.
  • pid: stores the PID file of the Kyuubi server instance.
  • work: the root of the working directories of all the forked sub-processes, a.k.a. SQL engines.

Running Kyuubi

As mentioned above, for a quick start deployment, then only you need to be sure is that your java runtime environment is correct.

Setup JAVA

You can either set it system-widely, e.g. in the .bashrc file.

  1. java -version
  2. java version "1.8.0_251"
  3. Java(TM) SE Runtime Environment (build 1.8.0_251-b08)
  4. Java HotSpot(TM) 64-Bit Server VM (build 25.251-b08, mixed mode)

Or, export JAVA_HOME=/path/to/java in the local os session.

  1. export JAVA_HOME=/Library/Java/JavaVirtualMachines/jdk-11.0.5.jdk/Contents/Home
  2. java -version
  3. java version "11.0.5" 2019-10-15 LTS
  4. Java(TM) SE Runtime Environment 18.9 (build 11.0.5+10-LTS)
  5. Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.5+10-LTS, mixed mode)

The recommended place to set JAVA_HOME is $KYUUBI_HOME/conf/kyuubi-env.sh, as the ways above are too flaky. The JAVA_HOME in $KYUUBI_HOME/conf/kyuubi-env.sh will take others’ precedence.

Starting Kyuubi

  1. bin/kyuubi start

It will print all essential environment variables on the screen during the server starts, and you may check whether they are expected.

  1. Starting Kyuubi Server from /Users/kentyao/kyuubi/kyuubi-1.0.2-bin-spark-3.0.1
  2. Using kyuubi.sh environment file /Users/kentyao/kyuubi/kyuubi-1.0.2-bin-spark-3.0.1/conf/kyuubi-env.sh to initialize...
  3. JAVA_HOME: /Library/Java/JavaVirtualMachines/jdk1.8.0_251.jdk/Contents/Home
  4. KYUUBI_HOME: /Users/kentyao/kyuubi/kyuubi-1.0.2-bin-spark-3.0.1
  5. KYUUBI_CONF_DIR: /Users/kentyao/kyuubi/kyuubi-1.0.2-bin-spark-3.0.1/conf
  6. KYUUBI_LOG_DIR: /Users/kentyao/kyuubi/kyuubi-1.0.2-bin-spark-3.0.1/logs
  7. KYUUBI_PID_DIR: /Users/kentyao/kyuubi/kyuubi-1.0.2-bin-spark-3.0.1/pid
  8. KYUUBI_WORK_DIR_ROOT: /Users/kentyao/kyuubi/kyuubi-1.0.2-bin-spark-3.0.1/work
  9. SPARK_HOME: /Users/kentyao/kyuubi/kyuubi-1.0.2-bin-spark-3.0.1/externals/spark-3.0.1-bin-hadoop2.7
  10. SPARK_CONF_DIR:
  11. HADOOP_CONF_DIR:
  12. Starting org.apache.kyuubi.server.KyuubiServer, logging to /Users/kentyao/kyuubi/kyuubi-1.0.2-bin-spark-3.0.1/logs/kyuubi-kentyao-org.apache.kyuubi.server.KyuubiServer-hulk.local.out
  13. Welcome to
  14. __ __ __
  15. /\ \/\ \ /\ \ __
  16. \ \ \/'/' __ __ __ __ __ __\ \ \____/\_\
  17. \ \ , < /\ \/\ \/\ \/\ \/\ \/\ \\ \ '__`\/\ \
  18. \ \ \\`\\ \ \_\ \ \ \_\ \ \ \_\ \\ \ \L\ \ \ \
  19. \ \_\ \_\/`____ \ \____/\ \____/ \ \_,__/\ \_\
  20. \/_/\/_/`/___/> \/___/ \/___/ \/___/ \/_/
  21. /\___/
  22. \/__/

If all goes well, this will result in the creation of the Kyuubi server instance with a PID stored in $KYUUBI_HOME/pid/kyuubi-<username>-org.apache.kyuubi.server.KyuubiServer.pid

Then, you can get the JDBC connection URL at the end of the log file, e.g.

  1. FrontendService: Starting and exposing JDBC connection at: jdbc:hive2://localhost:10009/

If something goes wrong, you shall be able to find some clues in the log file too.

Alternatively, it can run in the foreground, with the logs and other output written to stdout/stderr. Both streams should be captured if using a supervision system like supervisord.

  1. bin/kyuubi run

Using Hive Beeline

Kyuubi server is compatible with Apache Hive beeline, and a builtin beeline tool can be found within the pre-built Spark package in the $KYUUBI_HOME/externals directory, e.g. $KYUUBI_HOME/externals/spark-3.0.1-bin-hadoop2.7/bin/beeline

Opening a Connection

The command below will tell the Kyuubi server to create a session with itself.

  1. bin/beeline -u 'jdbc:hive2://localhost:10009/'
  2. Connecting to jdbc:hive2://localhost:10009/
  3. Connected to: Spark SQL (version 1.0.2)
  4. Driver: Hive JDBC (version 2.3.7)
  5. Transaction isolation: TRANSACTION_REPEATABLE_READ
  6. Beeline version 2.3.7 by Apache Hive
  7. 0: jdbc:hive2://localhost:10009/>

In this case, the session will create for the user named ‘anonymous’.

Kyuubi will create a Spark SQL engine application using kyuubi-spark-sql-engine-<version>.jar. It will cost a while for the application to be ready before fully establishing the session. Otherwise, an existing application will be resued, and the time cost here is negligible.

Similarly, you can create a session for another user(or principal, subject, and maybe something else you defined), e.g. named kentyao,

  1. bin/beeline -u 'jdbc:hive2://localhost:10009/' -n kentyao

The formerly created Spark application for user ‘anonymous’ will not be reused in this case, while a brand new application will be submitted for user ‘kentyao’ instead.

Then, you can see 3 processes running in your local environment, including one KyuubiServer instance and 2 SparkSubmit instances as the SQL engines.

  1. 75730 Jps
  2. 70843 KyuubiServer
  3. 72566 SparkSubmit
  4. 75356 SparkSubmit

Execute Statements

If the beeline session is successfully connected, then you can run any query supported by Spark SQL now. For example,

  1. 0: jdbc:hive2://localhost:10009/> select timestamp '2018-11-17';
  2. 2020-11-02 20:51:49.019 INFO operation.ExecuteStatement:
  3. Spark application name: kyuubi_kentyao_spark_20:44:57.240
  4. application ID: local-1604321098626
  5. application web UI: http://10.242.189.214:64922
  6. master: local[*]
  7. deploy mode: client
  8. version: 3.0.1
  9. Start time: 2020-11-02T12:44:57.398Z
  10. User: kentyao
  11. 2020-11-02 20:51:49.501 INFO codegen.CodeGenerator: Code generated in 13.673142 ms
  12. 2020-11-02 20:51:49.625 INFO spark.SparkContext: Starting job: collect at ExecuteStatement.scala:49
  13. 2020-11-02 20:51:50.129 INFO scheduler.DAGScheduler: Job 0 finished: collect at ExecuteStatement.scala:49, took 0.503838 s
  14. 2020-11-02 20:51:50.151 INFO codegen.CodeGenerator: Code generated in 9.685752 ms
  15. 2020-11-02 20:51:50.228 INFO operation.ExecuteStatement: Processing kentyao's query[d80a2664-342d-4f38-baaa-82e88e68a43b]: RUNNING_STATE -> FINISHED_STATE, statement: select timestamp '2018-11-17', time taken: 1.211 seconds
  16. +----------------------------------+
  17. | TIMESTAMP '2018-11-17 00:00:00' |
  18. +----------------------------------+
  19. | 2018-11-17 00:00:00.0 |
  20. +----------------------------------+
  21. 1 row selected (1.466 seconds)

As shown in the above case, you can retrieve all the operation logs, the result schema, and the result to your client-side in the beeline console.

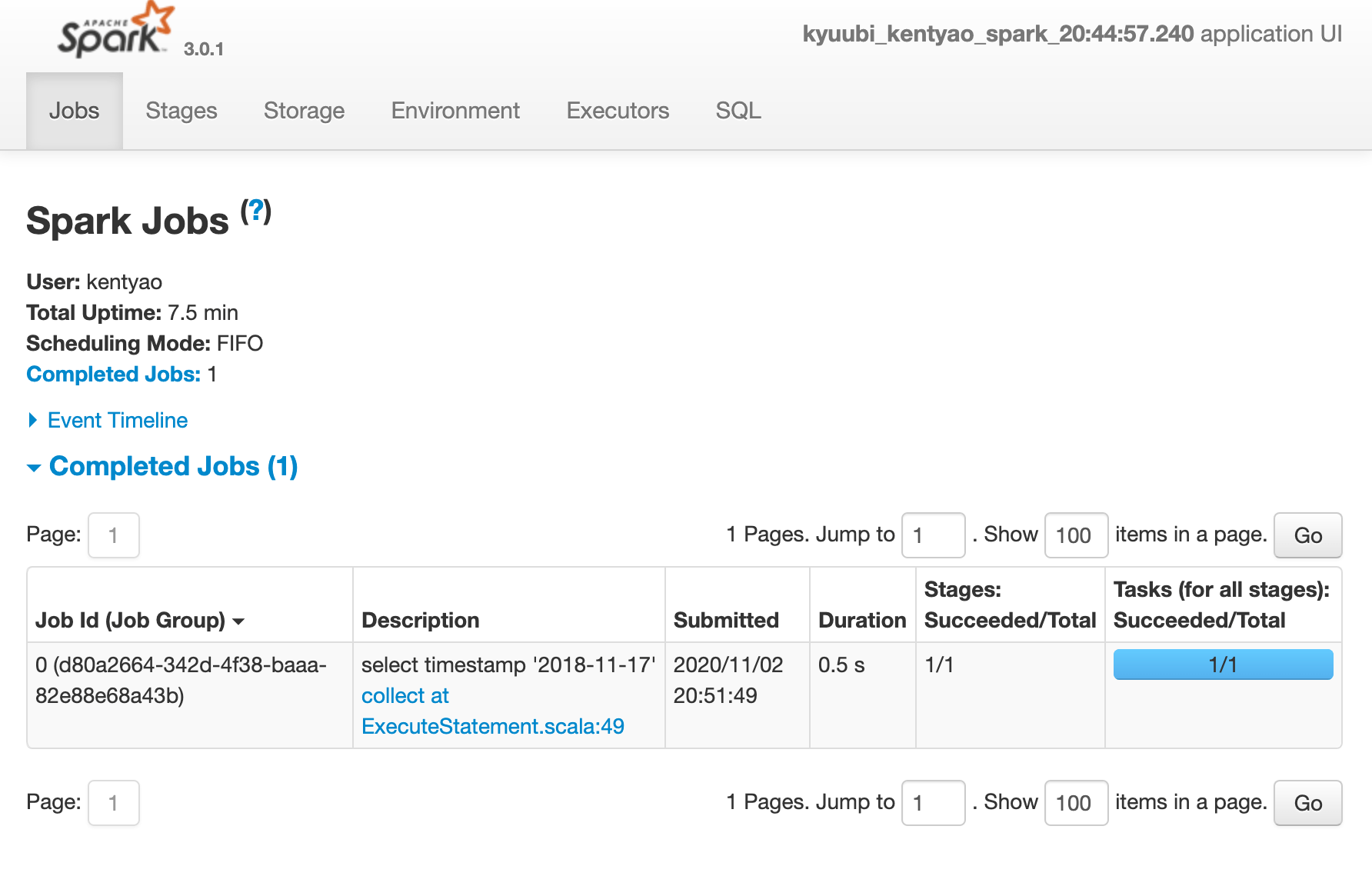

Additionally, some useful information about the background Spark SQL application associated with this connection is also printed in the operation log. For example, you can get the Spark web UI from the log for debugging or tuning.

1. Getting Started with Kyuubi - 图2

Closing a Connection

Close the session between beeline and Kyuubi server by executing !quit, for example,

  1. 0: jdbc:hive2://localhost:10009/> !quit
  2. Closing: 0: jdbc:hive2://localhost:10009/

Stopping Kyuubi

Stop Kyuubi by running the following in the $KYUUBI_HOME directory:

  1. bin/kyuubi.sh stop

The KyuubiServer instance will be stopped immediately while the SQL engine’s application will still be alive for a while.

If you start Kyuubi again before the SQL engine application terminates itself, it will reconnect to the newly created KyuubiServer instance.
